New Woodward Products

Innovative products for cleaner, more efficient, and more reliable performance.
Learn more about Woodward’s new control systems for power generation, oil and gas, and industrial markets.

Woodward has been providing reliable control and safety solutions for the global industrial market since 1870. It is the leader in the design and manufacture of control and safety systems and components for rotating and reciprocating equipment including turbines, engines and compressors.

easYgen-600/800

  • Designed for automatic or manual start/stop of diesel/gas generator sets
  • Equipped with engine ECU interface to electronic engines
  • Multiple feature packages:
Learn More

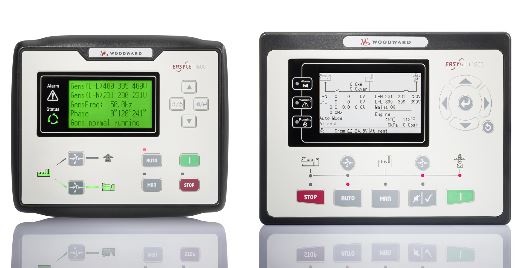

easYgen-1600/1800

  • Designed for automatic mains failure and changeover applications
  • Equipped with comprehensive engine, generator, and utility protection
  • Multiple feature packages:
    easYgen-1600: Compact to minimize footprint
    easYgen-1800: Advanced with market leading features to give your genset a competitive edge
Learn More

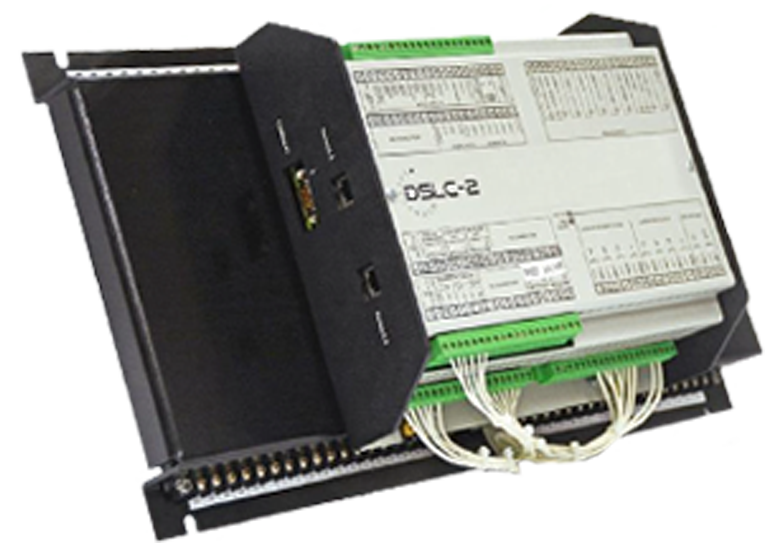

conversion kit

Woodward offers a wide variety of controllers for the synchronization and load share market. Our basic controllers provide standard features for parallel or load share applications which are easy to set up and use. The easy drop-in replacement kit will save time during installation and for quick retrofits. Included in the kit is the pre-wired DSLC-2 or MSCL-2 mounted on an aluminum chassis that is the exact size as the DSLC or MSLC. Wiring locations are close to the original, minimizing extra terminal blocks and wiring.

Learn More

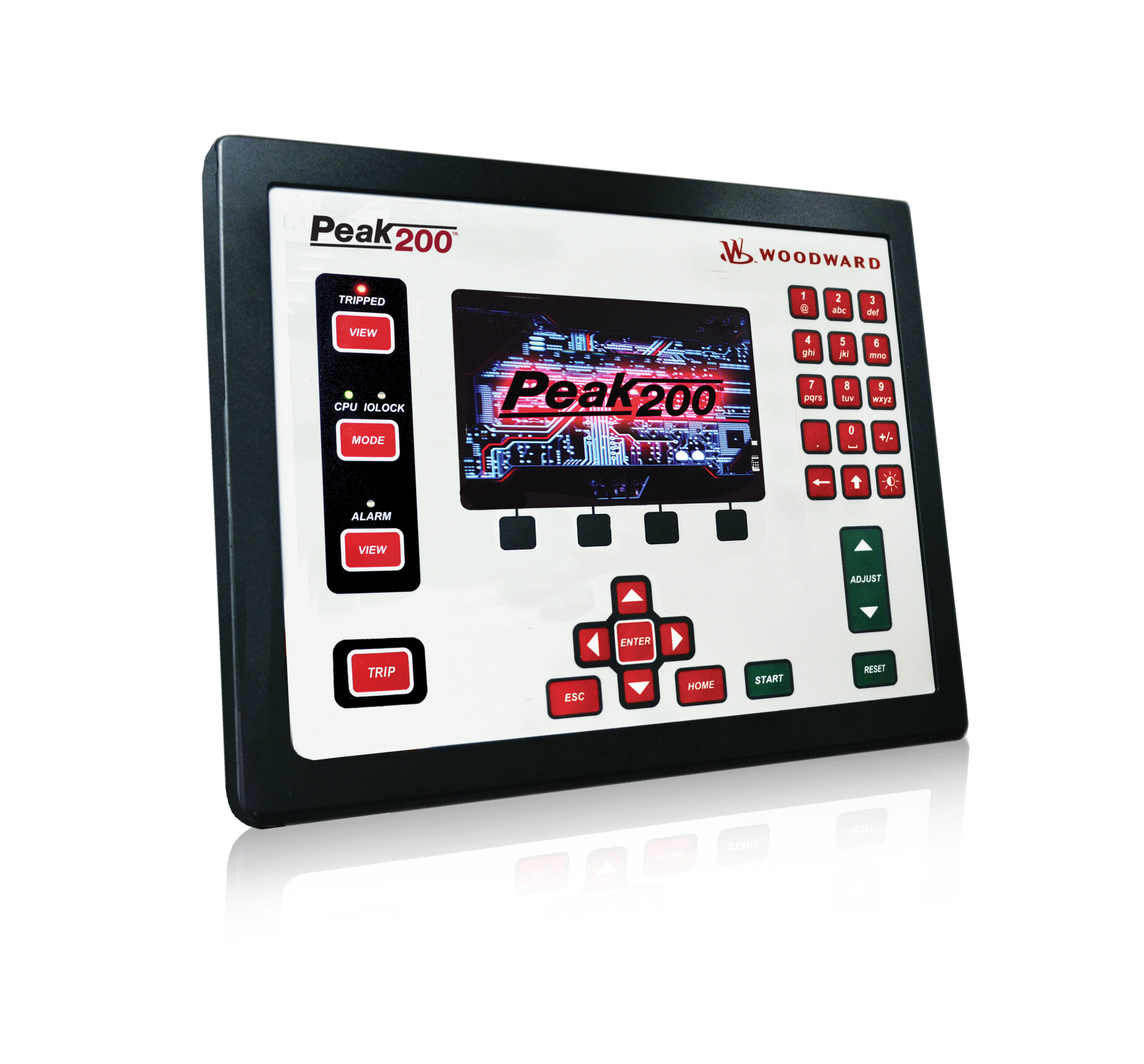

Peak200

  • Integrated operator control panel / HMI
  • Simple to install and operate
  • Ethernet and CANopen expandable I/O
  • Bulkhead and panel mount models available
  • Rated for Zone-II based hazardous locations
  • Integrated alarm/trip logging
Learn More

easYgen 3400-3500XT Genset Control for Complex Breaker Applications

  • Drop-in replacement for previous generation easYgen-3000 Series controls
  • Numerous inputs and outputs plus modular software structure.
  • Controls up to 32 gensets connected in a network with automatic sequencing.
  • Simple or complex paralleling: stand-by, AMF, peak shaving, import-export, cogeneration or distributed generation, isolated, island, mains and multiple unit mains parallel operations.
  • Available without display in a rugged metal housing.
Download PDF

Large Engine Control Module (LECM) — Single-Module Approach

  • The LECM single-box system can be built up with interlocking modules into an engine-mountable assembly to manage and control gas, diesel, or dual fuel engines.
  • The engine-mounted module controls all aspects of the engine’s operation: speed and load control, air/fuel ratio control, ignition or injector control, misfire and knock detection, air/gas/exhaust flow control, the engine’s start and stop routines, including monitoring and engine-protection-related alarms associated with each function, as well as on-board data logging and communications.
  • Modules for electronic control components and their software can be mixed and matched to address different applications; all use the same software interface.
  • Each module has its own microprocessor, runs its own software routines and shares information in a real-time manner, making the entire system act as one fully integrated control.
Download PDF

505 Digital Control for Steam Turbines

  • Operates industrial steam turbines of all sizes and applications.
  • Includes specifically designed algorithms and logic to start, stop, control, and protect industrial steam turbines or turbo-expanders, driving generators, compressors, pumps, or industrial fans.
  • Special PID-to-PID logic allows stable control during normal turbine operation and bumpless control mode transfers during plant upsets, minimizing process over- or undershoot conditions.
  • Field-configurable with integrated graphical operator control panel
Download PDF

505XT Digital Control for Steam Turbines

  • For single valve, or single extraction/admission industrial steam turbines.
  • Certified for hazardous locations – packaged in an industrial hardened enclosure for mounting within a system control panel in a plant control room or next to the turbine.
  • Includes turbine protection functions to ensure the turbine or its driven load is not ouperated outside of its designed limits.
  • Ideal for controlling turbine speed, turbine load, turbine extraction header pressure, turbine inlet header pressure, exhaust header pressure, or tie-line power.
Download PDF

QuickTrip Integrated Trip Block Assembly

  • Safety certified hydraulic trip block assembly for use in industrial steam turbine shutdown systems.
  • 2-out-of-3 voting design certified for use in IEC61508 SIL-3 systems.
  • For mechanical-drive or generator-drive steam turbines that use low pressure hydraulic trip oil headers.
  • Ideal for critical steam turbine applications requiring turbine up-time and availability.
Download PDF

Redundant CPC–DX Current–To–Pressure Converter – Dual Transfer

  • Hydraulic pressure control skid for positioning single–acting steam turbine valve servos in critical applications.
  • Redundant CPC skid includes two CPC-II units configured in a master/slave configuration, where the master unit controls output pressure, and the slave unit tracks master unit operation, and bumplessly takes control of output pressure should there be a failure with the master unit.
  • Ideal steam turbine valve control for applications requiring a high level of system reliability and availability.
  • Single hydraulic assembly provides all the isolation and support benefits of fully segmented current-to-pressure converters.
Download PDF

VariStroke Linear Actuator

  • Linear electro-hydraulic actuator provides the force to operate steam turbine control valves or valve racks on mechanical-drive or generator drive steam turbines.
  • Uses a low-pressure hydraulic oil source (typically turbine lube oil) to provide its output shaft force.
  • Dirt-tolerant design; variable/configurable shaft stroke lengths; fast slew rates/times.
  • Precise position control.
Download PDF
