Speed Monitoring

Reduce downtime, maintenance costs and avoid potential prime mover failures

MSHS Tachometer Kits take the guesswork out of tracking your turbine or engine speed. MSHS self-powered Tachometer Kits provide a safe, reliable means of speed monitoring and data logging of turbine and engine peak speeds. The self-powered tachometers do not require external voltage; only a connection to the speed sensor is needed.

Specified for Woodward TG and PG Turbine Governors, MSHS self-powered Tach Kits are scalable, field-configurable, and easy to install directly on the governor. The tachometers have gear-encased housing and are intrinsically safe – Class I, Div II approved. Avoid potential prime mover failures, reduce downtime, and maintenance costs due to turbine or engine overspeed.

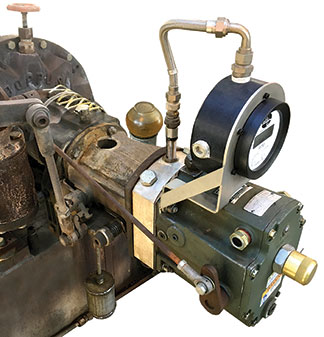

TG Governor Tachometer Kit

MSHS TG Tachometer Kit mounts on mechanical-hydraulic Woodward TG governors used on general purpose steam turbines. The self-powered TG Tach Kit provides easy, reliable speed monitoring and data logging.

• Universal fit on most turbines, no external power required
• Shock, vibration & moisture resistant
• Tracks peak speed & operating hours
• API 611/612* compliant
• Historic tracking & display holds the last 10 peak speed readings
• The tachometer has a five (5) digit backlit display
• Adapts to multiple magnetic pickup requirements
• API Standard 611 General Steam Turbines for Refinery Service

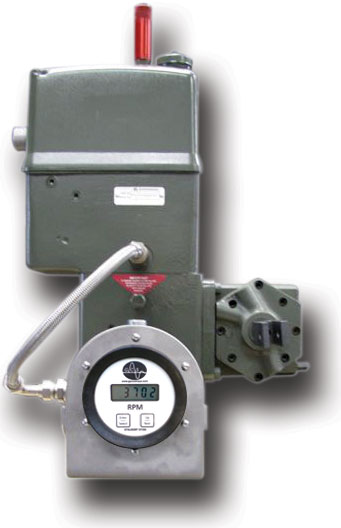

PG Governor Tachometer Kit

The MSHS-designed PG Tachometer Kit mounts to the installation port on mechanical-hydraulic Woodward PG governors used on general purpose steam turbines.

• Adapts to the base of any Woodward PG governor
• Local speed indication to meet API 611 *
• Designed for digital retrofits
• Easy to install & read
• Self-powered
• The tachometer has a five (5) digit backlit display
• The tachometer can be remotely mounted
• Housing Options:

* API Standard 611 General-Purpose Steam Turbines for Refinery Service

PG Tachometer Kit Options and Specifications

PG Governor part number required to specify correct base. Tach Kit requires an installation port for magnetic pickup.

• Alco Square Base – p/n 2853-0012
• Round Base – p/n 2853-0013
• Encased gear, RAL 7035 Textured
• Shock, vibration, and moisture resistant
• Intrinsically safe tachometer; Class I, Div I approved
• Operating temperature range -5 to +175
• The minimum signal amplitude is 4.0 VRMS
• LCD display

On-Engine Speed Monitoring Diesel Engines

The MSHS Digital Tachometer provides reliable readings for over-speed testing locally at the engine. Technicians can rely on the tach readings when setting up mechanical governors during exchanges. The self-powered tachs do not require external voltage.
