MAN Turbo

MSHS Supports MAN Diesel & Turbo

MAN Diesel & Turbo’s industrial history has existed for more than two and a half centuries. MSHS expertise in maintaining and overhauling turbochargers ensures customers receive the best service possible. MSHS provides service and parts for all MAN turbochargers.

MSHS experienced and factory- trained technicians have provided turbo services for more than 28 years. Our field service technicians provide service and support 24/7, 365 days a year. MSHS is ISO 9001:2015 certified.

Features of MAN Turbochargers

  • Output spectrum of turbocharger for two and four-stroke engines from 390 kW to 30,000 kW per turbocharger
  • High efficiency
  • Easy maintenance

MAN Core Components

  • MAN Rotor Assembly
  • MAN Gas Admission Casing
  • MAN Turbine Rotor
  • MAN Gas outlet Casing

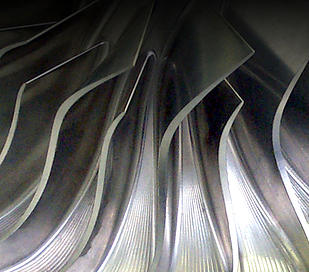

  • MAN Compressor Wheel
  • MAN Bearing Casing
  • MAN Basic Unit or Cartridge

  • MAN Insert
  • MAN Nozzle Ring
  • MAN Air Intake Casing
  • MAN Shroud Ring
  • MAN Compressor Casing
  • MAN Diffuser

Product Range

TCR Series

TCR10 / TCR12 / TCR14 TCR16 / TCR18 / TCR20 / TCR22

  • Engine outputs from 390 to 6,700 kW
  • Radial flow design
  • Increased efficiency due to improved compressor wheel and turbine design
  • Constant and pulse pressure turbocharging
  • Low moment of inertia for best dynamic behavior
  • New compressor wheel fixation for easy servicing
  • Un-cooled casings
  • Pipe-less design with integrated oil inlet and oil drain
  • No sealing air required

NR/S Series

NR12S / NR14S / NR17S / NR20S / NR24S / NR29S / NR34S

  • For engine outputs from 450 to 5,400 kW per turbocharger
  • Radial flow design
  • Suitable for heavy fuel, diesel oil, bio fuel and gas operation
  • Un-cooled casings
  • Inboard plain bearing design
  • Lubricated by the engines lube oil system
  • Easy maintenance

TCA Series

CA33 / TCA44 / TCA55 / TCA66 / TCA77 / TCA88

  • For engine outputs from 2,100 to 30,000 kW per turbocharger
  • Inboard bearing design
  • Axial flow design
  • High performance floating bearings for minimized mechanical losses and optimized damping behavior
  • Reduced noise emission and increased efficiency through new developed compressor wheel
  • Thrust bearing inspection without shaft removal
  • Easy replacement of individual turbine blades
  • Simple installation due to integrated oil piping, sealing air and venting system
  • Water-free design

NA/S/T9 Series

NA29S / NA34S / NA40S / NA48S / NA57/T9 / NA70 / T9

  • For engine outputs from 1,650 to 24,500 kW per turbocharger
  • Suitable for heavy fuel, diesel oil, bio fuel and gas operation
  • Axial flow turbine inboard plain bearing design
  • Lubricated by the engines lube oil system
  • Easy maintenance

MSHS MAN Turbocharger Spare Parts and Services

MAN Turbocharger Spare Parts

  • Dedicated MAN Turbocharger Team of Specialists
  • Full access to the supply chain
  • Extensive MAN Turbocharger spare parts inventory
  • Competitive pricing and minimal turnaround times

Find out more about our extensive spare parts inventory.

More

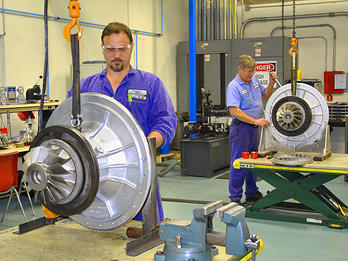

Factory-trained MAN Turbocharger Service

  • Short turnaround times for emergency service in the Americas
  • Factory-trained and experienced technicians
  • Installation of complete units
  • Retrofits and upgrades of existing equipment

Find out more about our engine and auxiliary services.

More

Ready to serve you

Full service locations in Southeast, the Gulf Coast, and the Pacific Northwest, plus a network of local representatives throughout the Americas and the Caribbean.
