ST150

Ingersoll Rand Air Starters

Introducing the Ingersoll Rand ST150 Series mid-range turbine engine starter. Packing a powerful 47 HP in a solid aluminum turbine motor, this new family of air starters is based on the patented next generation technology from the rugged, long lasting, easy to service, high performing and efficient ST1000 turbine starter. Built to withstand the toughest environmental and working conditions combining robust features and flexibility to deliver reliable, heavy-duty starting in a wide variety of industrial, oil and gas, marine, power generation, rail, and mining applications

ST150 Mid-Range Turbine Engine Starter

  • OEM & Type Approved
  • Lightweight: You won’t have to worry when using these starters.
  • Durable: Able to withstand harsh conditions.n
  • Reliable: Will produce the same output every time

DURABILITY
Rugged planetary gearing allows extended crank cycles. The patented, fully supported high-speed rotor extends bearing life by minimizing deflection and ensuring concentric running; a better alternative to cantilever designs.

SERVICEABILITY
Patented slip fit turbine motor design with half the parts of competitive units allow you to easily remove the rotor and change from low pressure to high pressure in a matter of minutes.

POWER
47HP solid aluminum turbine motor for fast starts on heavy duty diesel and gas engines in the 11 to 90 liter size. Superior efficiency means reduced operating costs and lower emmissions.

RELIABILITY
Solid billet aluminum turbine motor with robust fins and nozzles and a clear single stage open flow path let you handle the harshest conditions.

Models

  • ST155
  • ST159

Specifications

Available in multiple configurations - inline and offset gear cases, pre-engaged and inertia engagement, standard and metric drive pinions, as well as non-standard mounting flanges. Sealed for use in gas and air applications.

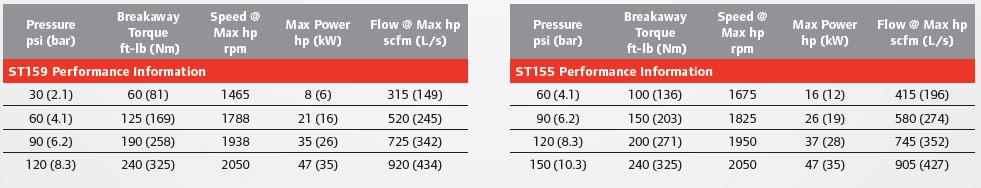

Model Specification

Ready to serve you

Full service locations in Southeast, the Gulf Coast, and the Pacific Northwest, plus a network of local representatives throughout the Americas and the Caribbean.

Estamos disponible para servirle
Instalaciones de servicio completo en el Sureste; Costa Noroeste, y El Golfo. Además una red de agentes en
América Latina y el Caribe.
