ST950B

Ingersoll Rand Air Starters

Ingersoll Rand air starters are flexible, efficient alternatives to electric sources. They create sheer power from the natural environment, and are perfect for a wide range of industrial, marine and automotive applications. Ingersoll Rand offers well over 200 cataloged models of vain and turbine air starters with an extensive range of options and maintains data on hundreds of special application air starters for extreme conditions.

ST950B

  • Gearing Type: High horsepower, lower torque
  • Normal / High Pressure: Designed for Max Pressure of 150PSI
  • Engagement Type: Inertia and Pre-Engaged
  • Powerful 66 hp turbine motor uses no external lubrication
  • Robust gearing handles extended crank cycles
  • Sealed, oil lubricated planetary gears provide maintenance-free operation
  • Sealed for use in gas and air applications
  • Left- or right-hand rotation
  • 4 inlet, 4 exhaust, and 16 housing orientations

Models

  • ST950BI03L32
  • ST950BI03L32S
  • ST950BI03R31
  • ST950BI03R31S
  • ST950BP03L32
  • ST950BP03L32S
  • ST950BP03L92
  • ST950BP03R25
  • ST950BP03R25S
  • ST950BP03R31
  • ST950BP03R31S
  • ST950BP03R51

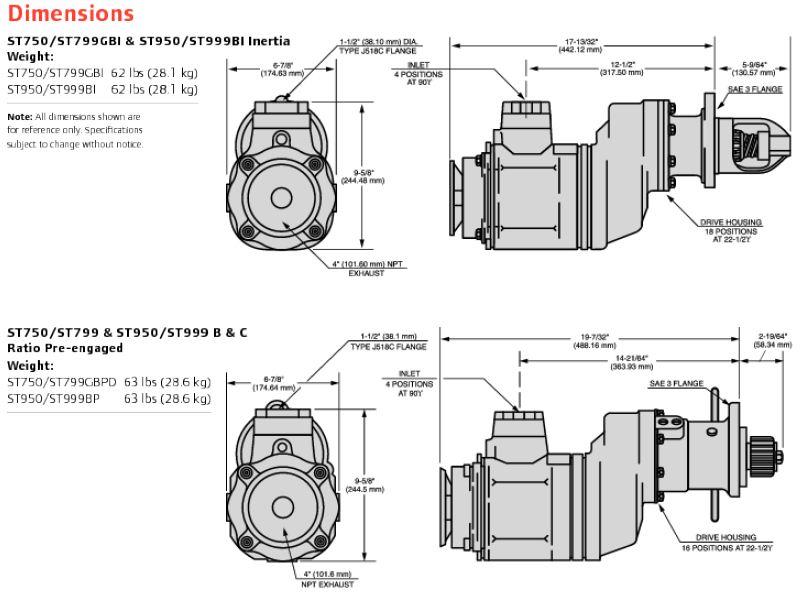

Dimensions

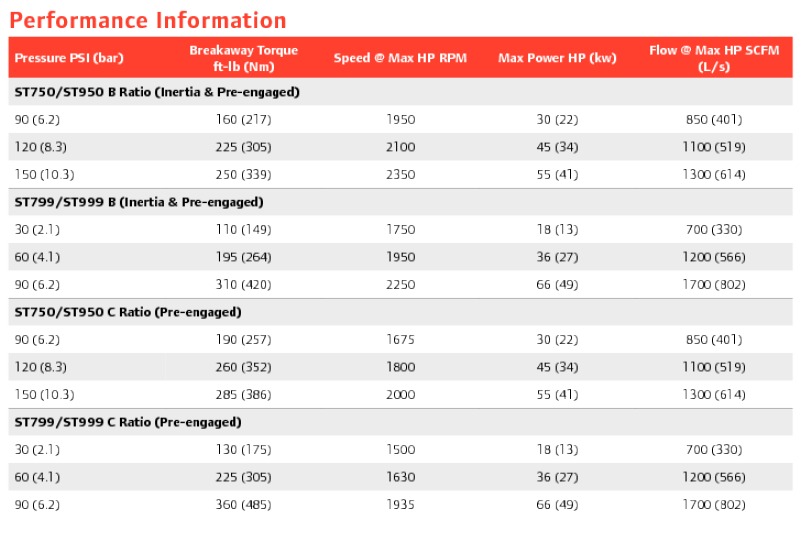

Performance Information
