ST499

Ingersoll Rand Air Starters

Ingersoll Rand air starters are flexible, efficient alternatives to electric sources. They create sheer power from the natural environment, and are perfect for a wide range of industrial, marine and automotive applications. Ingersoll Rand offers well over 200 cataloged models of vain and turbine air starters with an extensive range of options and maintains data on hundreds of special application air starters for extreme conditions.

ST499

  • Low Pressure Starter : Designed for Max Pressure of 90PSI
  • Engagement Type: Pre-Engaged
  • Efficient 26 hp turbine motor uses no external lubrication
  • One Hose Hookup simplifies required piping
  • Inline design weighs only 23 lbs (10.4 kg)
  • Sealed Oil Bath Lubrication for Gears and Bearings provides maintenance free operation Versatile
  • Removable mounting flange can be rotated 360 degrees for greater mounting flexibility
  • Compact, lightweight design makes installation easy
  • Overhung pinion design fits most worldwide manufacturers? engines

Models

  • ST499C01R99
  • ST499C03L32
  • ST499C03L94
  • ST499C03R31
  • ST499EC03L94
  • ST499IC01L32
  • ST499IC01R31
  • ST499IC03L32
  • ST499IC03R29
  • ST499IC03R31

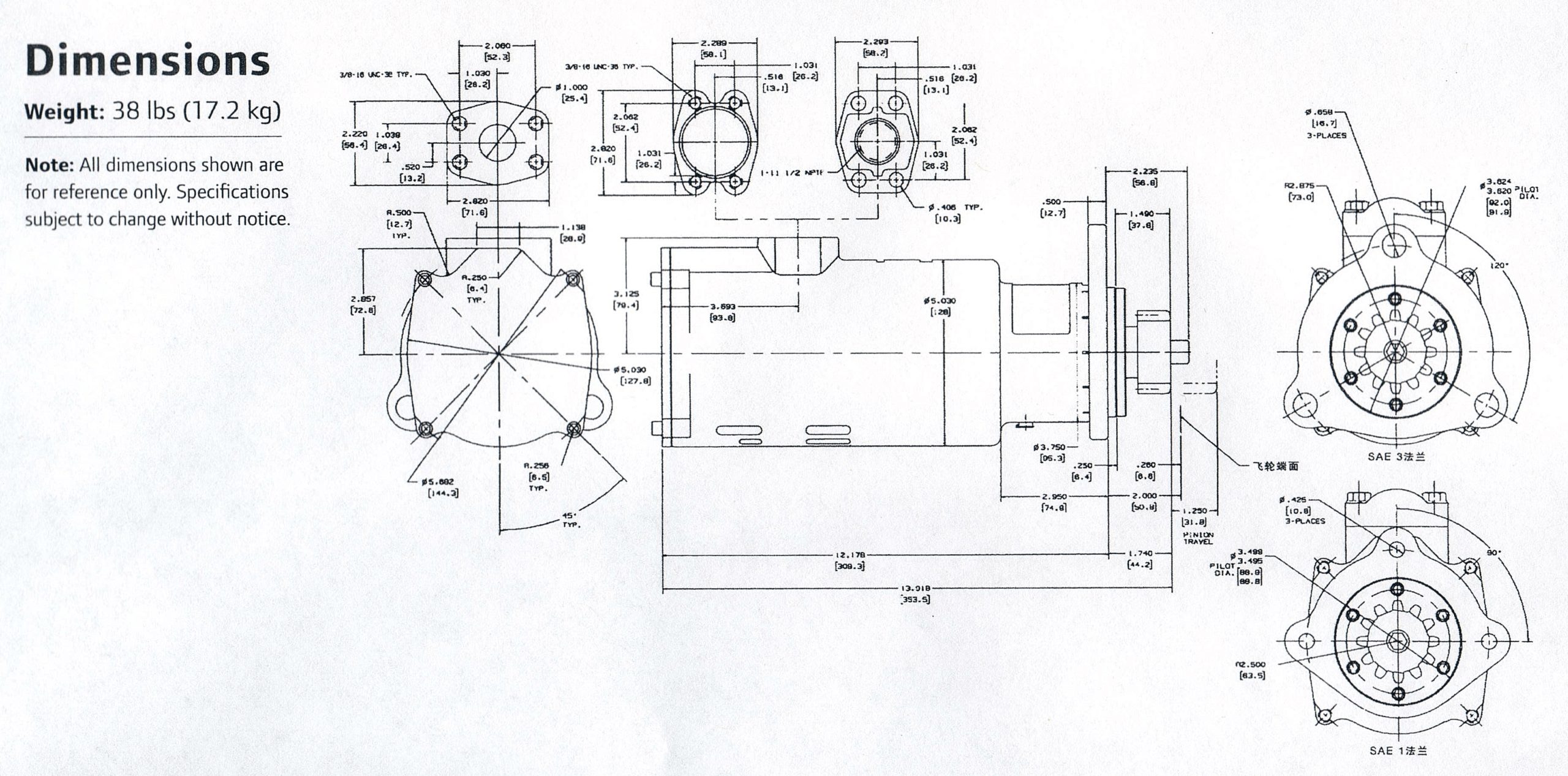

Dimensions

Performance Information
