ST1060B

Ingersoll Rand Air Starters

Ingersoll Rand air starters are flexible, efficient alternatives to electric sources. They create sheer power from the natural environment, and are perfect for a wide range of industrial, marine and automotive applications. Ingersoll Rand offers well over 200 cataloged models of vain and turbine air starters with an extensive range of options and maintains data on hundreds of special application air starters for extreme conditions.

ST1060B

  • Gearing Type: Higher horsepower, lower torque
  • Normal / High Pressure: Designed for MAX pressure of 150PSI
  • Engagement Type: Inertia and Pre-Engaged
  • Powerful 70 hp turbine motor uses no external lubrication and offers best in class efficiency
  • Patented, solid aluminum motor design enables reliable operation in harsh, contaminated environments
  • Robust gearing handles extended crank cycles
  • Patented, fully supported high-speed rotor extends bearing life by minimizing deflection and ensuring concentric running
  • a better alternative to cantilever designs Sealed for use in gas and air applications
  • Left- or right-hand rotation available
  • 4 inlet, 4 exhaust, and 16 housing orientations
  • Patented Slip fit motor design makes servicing simple and convenient

Models

  • ST1060BI03L32
  • ST1060BI03R31
  • ST1060BP03L32
  • ST1060BP03L92
  • ST1060BP03R25
  • ST1060BP03R31

Dual ST1000 Air Start: Abutment and Reset

Dual ST1000 Air Start System for Diesel Engine

D-Ratio Ingersoll Rand ST1000 Air Starter on an EMD 16-645 Engine

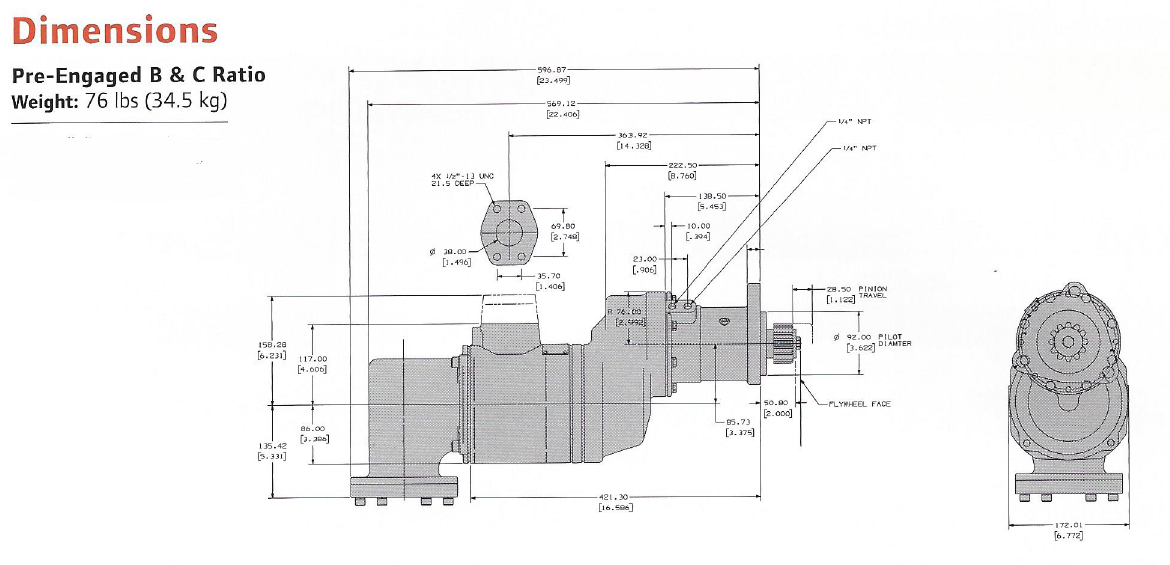

Dimensions

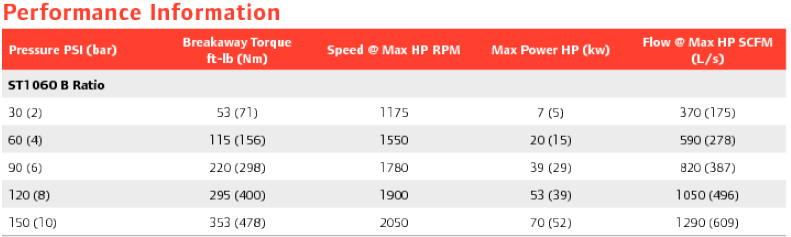

Performance Information
