ST1000M

Ingersoll Rand Air Starters

Ingersoll Rand air starters are flexible, efficient alternatives to electric sources. They create sheer power from the natural environment, and are perfect for a wide range of industrial, marine and automotive applications. Ingersoll Rand offers well over 200 cataloged models of vain and turbine air starters with an extensive range of options and maintains data on hundreds of special application air starters for extreme conditions.

ST1000M

  • ST1000M version with 2 inch NPT inlet reduces the need for piping changes
  • High and Low Pressure versions designed to work between 30-150PSI
  • Powerful 70 hp turbine motor uses no external lubrication and offers best in class efficiency
  • Patented, solid aluminum motor design enables reliable operation in harsh, contaminated environments
  • Robust gearing handles extended crank cycles
  • Patented, fully supported high-speed rotor extends bearing life by minimizing deflection and ensuring concentric running
  • a better alternative to cantilever designs Sealed for use in gas and air applications
  • Left- or right-hand rotation available
  • 4 inlet, 4 exhaust, and 16 housing orientations
  • Patented Slip fit motor design makes servicing simple and convenient

Models

  • ST1060MB03L32
  • ST1060MB03R25
  • ST1060MB03R31
  • ST1060MC03L26
  • ST1060MC03R25
  • ST1099MB03R25
  • ST1099MB03R31
  • ST1099MC03L26
  • ST1099MC03R25

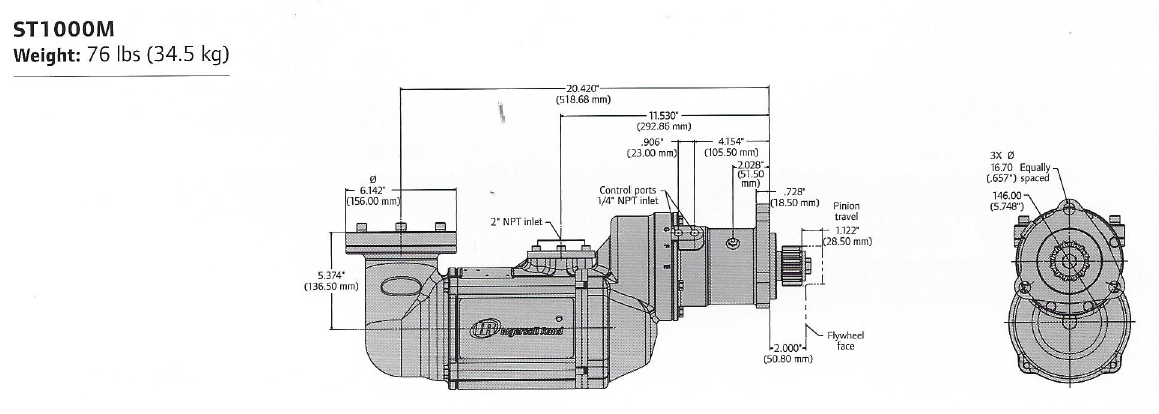

Dimensions

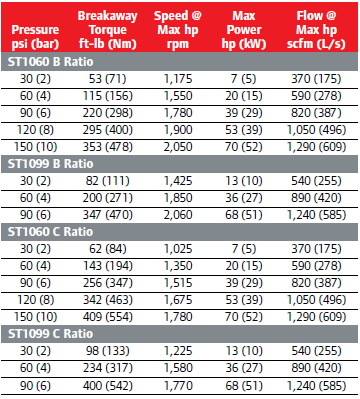

Performance Information

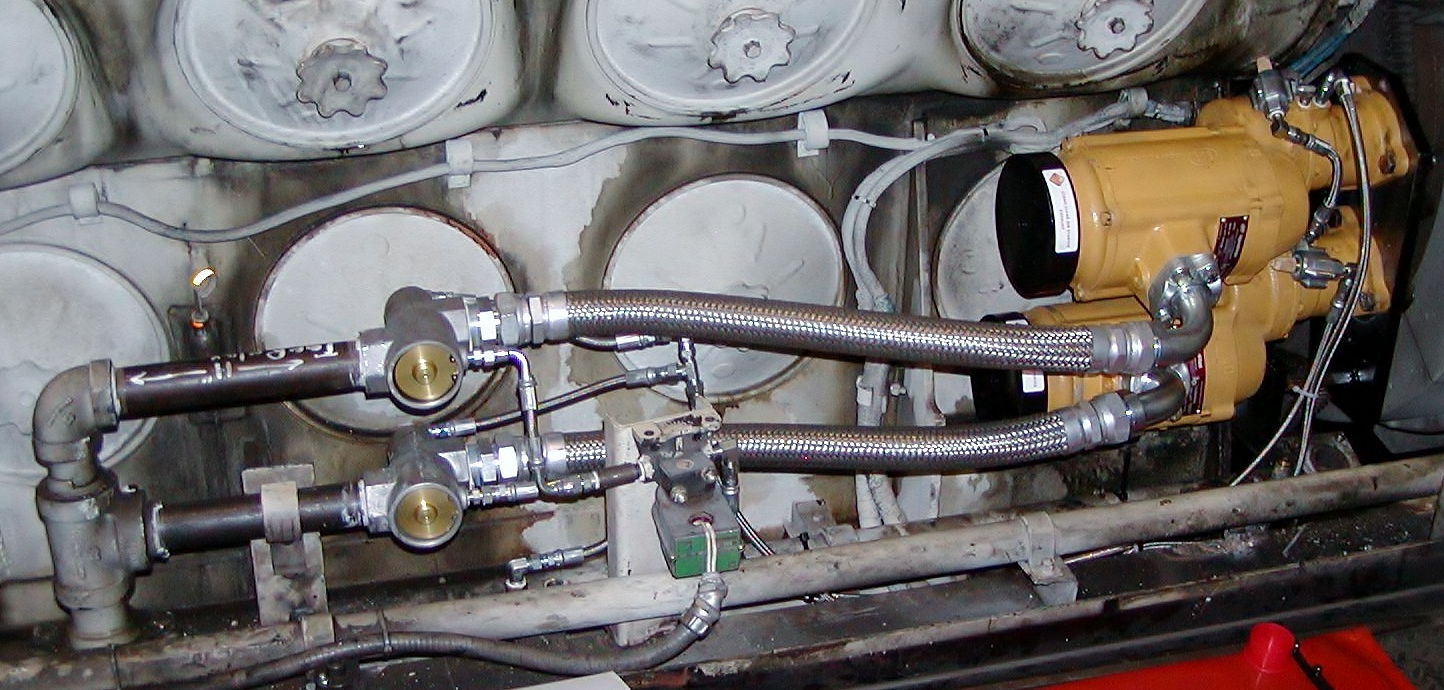

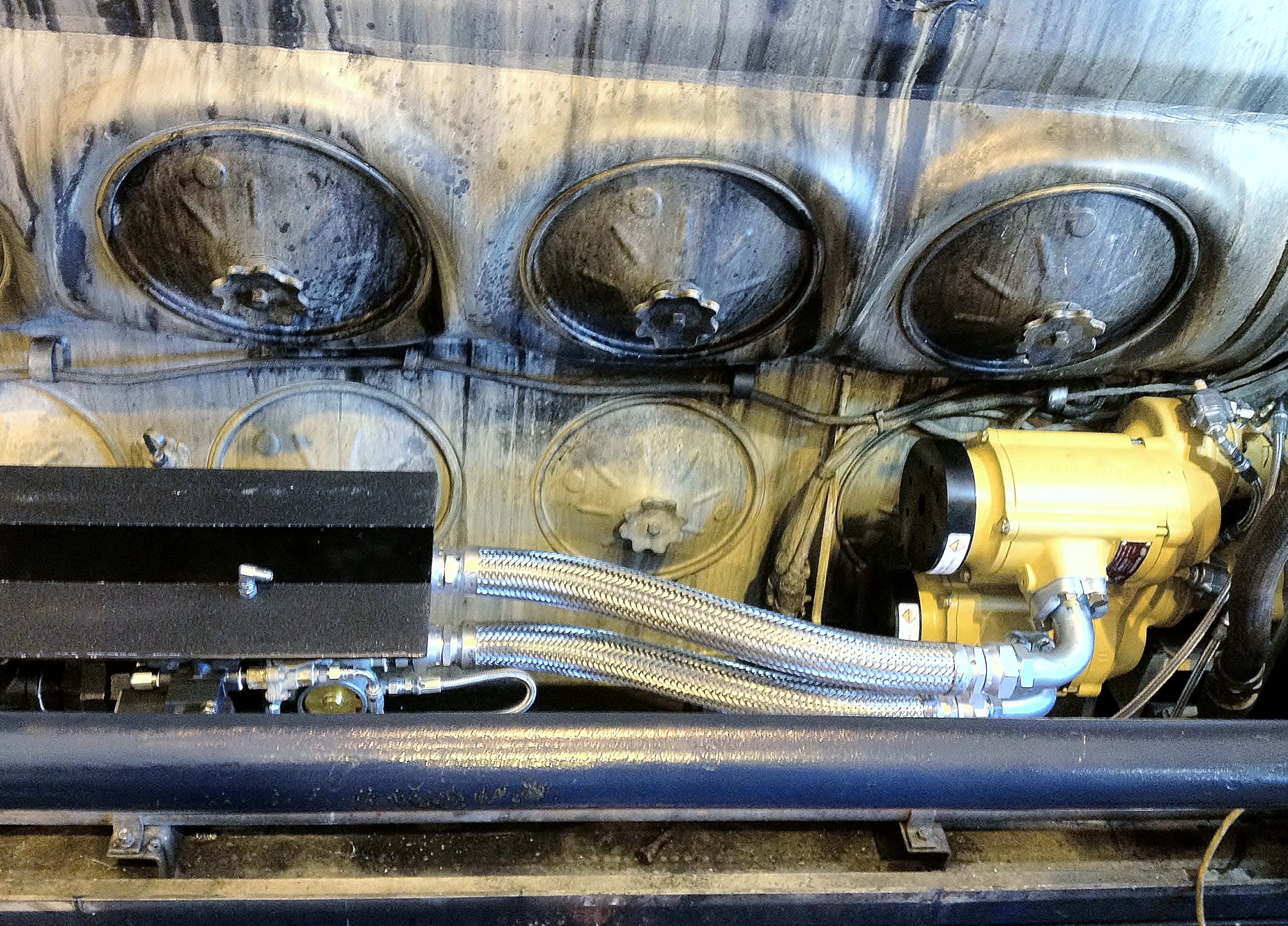

Application

Application

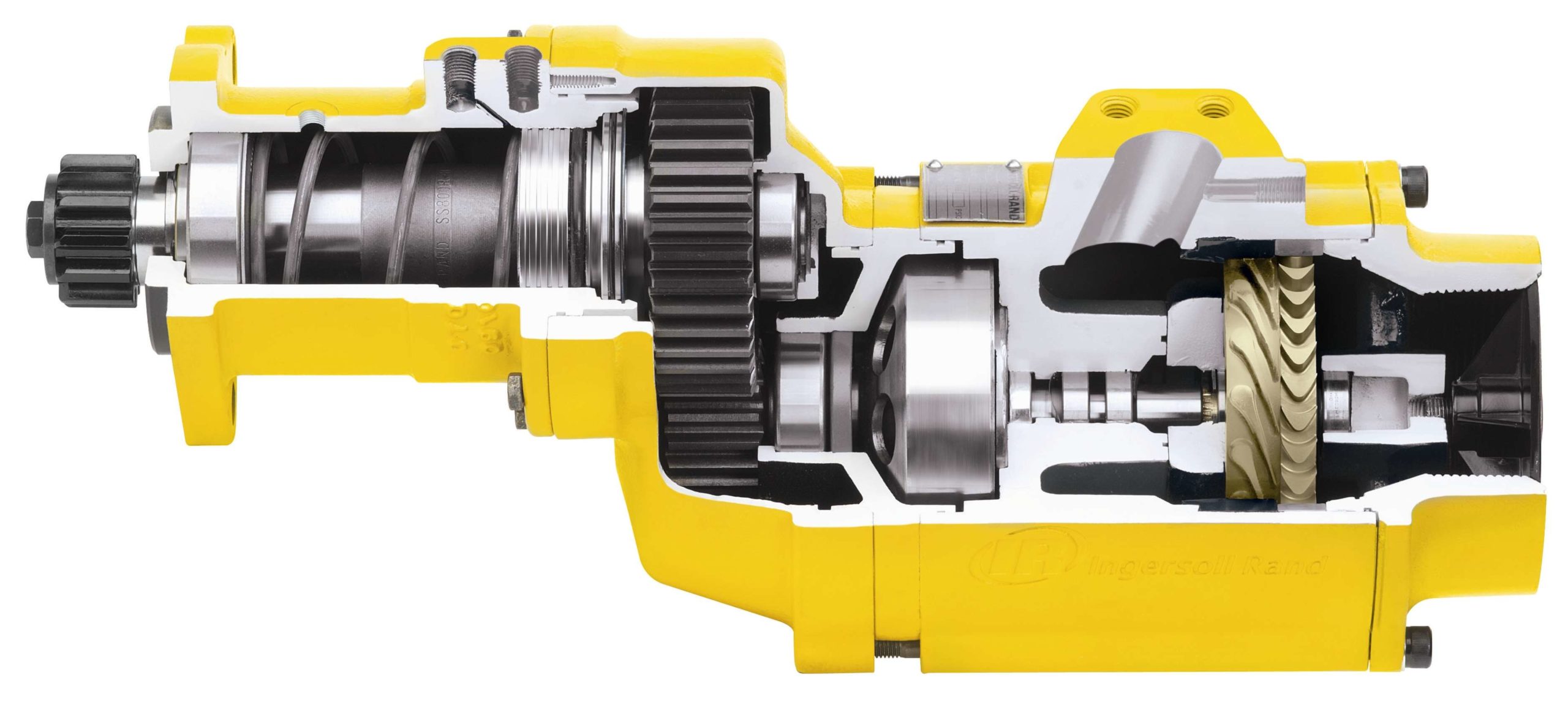

Cutaways
