150BMGE

Ingersoll Rand air starters are flexible, efficient alternatives to electric sources. They create sheer power from the natural environment, and are perfect for a wide range of industrial, marine and automotive applications. Ingersoll Rand offers well over 200 cataloged models of vain and turbine air starters with an extensive range of options and maintains data on hundreds of special application air starters for extreme conditions.

150BMGE

  • Engagement Type: Inertia
  • Powerful 32 hp motor
  • The leading mid-range starter design, the standard by which all others are measured
  • Simple design ensures rugged dependability and ease of maintenance
  • Offset gear ratios: E = 3.46:1
  • Backcap ports for injection lubricating
  • All models sealed for use in air or gas applications
  • Offset design for simple mounting
  • 4 inlet, 4 exhaust, and 18 drive housing orientations
  • Left- and right-hand rotation available
  • 30-150 psi (2.1-10.3 bars) operation

Models

  • 150BMGE21LH
  • 150BMGE21RH-5
  • 150BMGE21RH-6

Dimensions

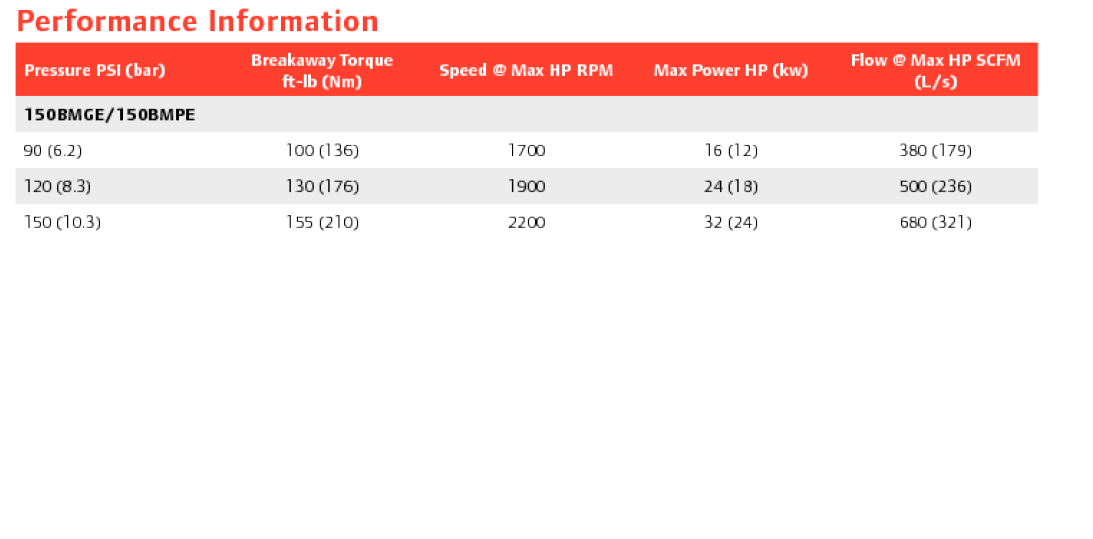

Performance Information
